Field Density Testing (Sand Cone Method) in Navan

A recent commercial development off the Athboy Road ran into compaction issues after the first 300 mm of structural fill was placed. The contractor had followed the lift thickness specification, but roller passes alone didn't guarantee uniform density across the pad, particularly where the underlying till transitioned into softer alluvial silt near the Boyne. That's when the field density test using the sand cone method becomes the only practical way to verify what's actually been achieved in the ground. Navan's geology is shaped by Carboniferous limestone bedrock overlain with glacial till of variable thickness; in the town centre and around the Blackwater, pockets of river terrace gravels and soft clays create sharp transitions over short distances. A density test on the surface tells you whether those transitions are going to translate into differential settlement later. Our team runs ASTM D1556-compliant sand cone testing on site, giving you a direct measurement of in-place density within the same day so that compaction acceptance decisions aren't left to guesswork. For projects where deeper strength profiling is also required, combining this with SPT drilling at foundation level provides a complete picture of both shallow compaction and deeper bearing capacity.

A properly executed sand cone test in Navan's glacial tills reveals compaction defects that a nuclear gauge can mask due to moisture interference.

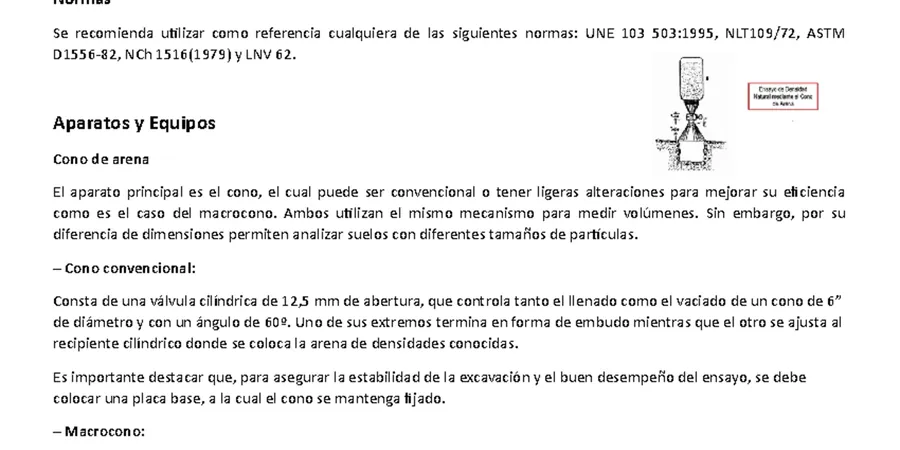

Methodology and scope

Comparing two sites just three kilometres apart in Navan illustrates why a single Proctor reference curve never fits the whole town. Near the IDA Business Park, the natural ground is typically a stony, well-graded glacial till that compacts efficiently at moisture contents close to optimum; achieving 95% of modified Proctor maximum dry density is usually straightforward with a smooth-drum roller and reasonable moisture conditioning. Shift east toward the floodplain of the Boyne, however, and the silty clay subgrades demand much tighter moisture control, because a deviation of just two per cent above optimum can trap pore pressure and produce a spongy finish that looks dense but fails the sand cone test within the top 150 mm. The field density test on these silts often reveals that what the roller operator feels as refusal is actually a remoulded crust sitting over under-compacted material. That distinction matters enormously for road sub-base performance under Navan's damp winter conditions, where poorly compacted formation layers lead to rutting within the first two years of service. Together with Proctor testing to establish the laboratory reference curve, the sand cone method gives you a defensible, repeatable field verification that holds up under both the resident engineer's inspection and the long-term performance demands of Irish climate.

Field Density Testing (Sand Cone Method) in Navan

Local considerations

Navan's weather pattern, with rainfall distributed fairly evenly across the year and an annual average exceeding 800 mm, creates a persistent risk window for earthworks compaction. A lift that passed density testing on a dry Tuesday can fail by Thursday if an overnight shower saturates the exposed surface before the next lift is placed. The sand cone method is particularly sensitive to near-surface moisture variation because the excavated material is weighed in its field state, meaning any rainwater infiltration inflates the apparent wet density and distorts the compaction ratio unless corrected with a reliable field moisture content determination. On the larger infrastructure projects around Navan, such as the M3 corridor upgrades and the ongoing residential expansions in the Johnstown area, we've seen entire compaction acceptance schedules delayed by weeks when density testing wasn't synchronised with the weather window. A practical mitigation is to run sand cone tests immediately after compaction, before any rain exposure, and to protect passed lifts with a light sealing pass of the roller. In floodplain zones adjacent to the Boyne and Blackwater rivers, rising groundwater during winter months can also alter the moisture profile from below, making a case for pairing field density checks with in-situ permeability testing when the formation level sits within capillary rise range.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.co

Applicable standards

ASTM D1556: Standard Test Method for Density and Unit Weight of Soil in Place by Sand-Cone Method, AASHTO T-191: Density of Soil In-Place by the Sand-Cone Method, TII Specification for Road Works, Series 600: Earthworks (Transport Infrastructure Ireland), ASTM D698: Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort, IS EN 1997-2:2007 Eurocode 7 — Geotechnical design — Ground investigation and testing

Associated technical services

Proctor Compaction Testing

Laboratory determination of the moisture-density relationship for site soils, providing the reference maximum dry density and optimum moisture content against which all field density results are compared.

In-Situ Permeability Testing

Field measurement of hydraulic conductivity in compacted liners, drainage blankets, and natural subgrades, often required alongside density acceptance for landfill cells and attenuation pond bases.

Typical parameters

Parameter	Typical value
Test standard	ASTM D1556 / AASHTO T-191
Measured property	In-place dry density and moisture content
Hole depth range	100–200 mm (typical lift thickness)
Reference laboratory test	Proctor (ASTM D698 / D1557)
Typical acceptance criterion	≥95% of maximum dry density (modified Proctor) for structural fill
Reporting	Same-day field report with % compaction per lift
Soil types suitability	Fine to medium-grained soils; max particle size ~50 mm

Frequently asked questions

How much does a field density test (sand cone method) cost in Navan?

A single sand cone density test on a site in Navan typically runs between €100 and €120, with the exact amount depending on how many tests are booked in the same mobilisation and the travel distance from the laboratory. Most earthworks contracts call for a minimum of one test per 500 m² per compacted lift, so the per-test cost is best evaluated as part of an overall compaction control programme rather than in isolation.

What is the difference between the sand cone method and a nuclear density gauge?

The sand cone method (ASTM D1556) directly measures the volume of excavated soil by backfilling the hole with calibrated sand and weighing the removed material, which eliminates the moisture and mineral interference that can affect nuclear gauge readings. In Navan's glacial tills, where iron-rich minerals and variable moisture are common, the sand cone provides a more defensible primary reference, though the nuclear gauge is faster for preliminary screening when correlated against sand cone results on the same material.

How many sand cone tests do I need for my earthworks project in Navan?

The frequency depends on the specification, but TII earthworks guidelines and common Irish practice call for a minimum of one field density test per 500 m² per compacted lift, with additional tests at the edges of the pad and around structures. For smaller residential plots under 0.2 hectares, four to six tests per lift usually provide sufficient coverage to demonstrate compliance to the local authority.

On which soil types does the sand cone method work best?

The sand cone method is reliable in fine- to medium-grained soils with a maximum particle size around 50 mm, which covers most of the glacial till, river gravel, and silty clay subgrades encountered across Navan. Very coarse cobble fills or open-graded drainage stone require alternative methods such as the water replacement technique, because the calibrated sand can migrate into large voids and distort the volume measurement.
