In Navan, the assumption that Ireland is aseismic can be a costly oversight. While strong earthquakes are rare, the town sits on a complex mix of limestone bedrock and glacial till, and the long-period energy from distant offshore events or induced seismicity can still trigger resonance in mid-rise structures. We have seen how a standard fixed-base design on the drumlin slopes near the Boyne can amplify ground motion unexpectedly, leading to non-structural damage. Base isolation decouples the superstructure from these ground movements, using elastomeric or sliding bearings to shift the building's natural period away from the dominant site frequencies. This approach is particularly relevant when the underlying till varies in thickness, creating differential stiffness that a rigid foundation would struggle to manage. Combining this with a detailed MASW survey gives us the Vs30 profile needed to calibrate the isolation system precisely for Navan's subsurface conditions.
A well-tuned base isolation system can reduce seismic forces on a Navan building by up to 75%, turning a potential structural retrofit into a minor inspection.
Methodology and scope
Local considerations
A three-story apartment block near the Trim Road, constructed on a raft foundation over six metres of soft silty till, began showing persistent drywall cracking within two years. The culprit wasn't settlement—it was long-period vibration from heavy quarry blasting at a nearby operation, transmitting efficiently through the limestone bedrock and coupling into the building's fundamental mode. The owner initially pursued underpinning, but a dynamic analysis revealed the fix needed to be at the base, not below it. Retrofitting with base isolation in an existing structure is invasive and expensive, requiring a temporary jacking system to insert isolators at column bases. New builds avoid this entirely, integrating the isolation plane during construction at a marginal cost compared to the long-term performance gain. Ignoring this during the design phase in Navan, where the till-bedrock interface can act as a wave guide, leaves a structure vulnerable to cumulative fatigue.
Applicable standards
EN 1998-1:2004 (Eurocode 8: Design of structures for earthquake resistance), EN 15129:2009 (Anti-seismic devices), EN 1990:2002 (Basis of structural design, Annex B for reliability differentiation)
Associated technical services
Isolation System Design & Modeling
Nonlinear time-history analysis and response spectrum analysis to select and configure HDRB, LRB, or friction pendulum systems, optimizing for Navan's low-to-moderate seismicity while controlling displacement.
Site-Specific Seismic Hazard Assessment
Determination of the design spectrum and soil factors through probabilistic seismic hazard analysis (PSHA) and site response analysis, incorporating local borehole data and Vs profiling.
Peer Review & Construction Support

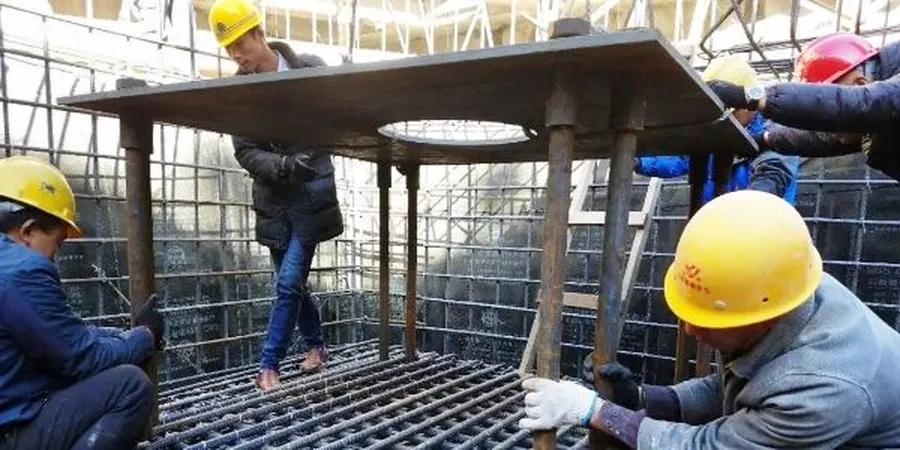

Independent design verification, prototype bearing testing per Annex C of EN 15129, and on-site supervision during isolator installation to ensure correct placement and moat detailing.
Typical parameters
Frequently asked questions
Is base isolation justified in a low-seismicity area like Navan?
In many cases, yes. The design ground acceleration may be low, but soft soil amplification on glacial tills can increase spectral accelerations at periods common in 3- to 5-storey buildings. Isolation detunes the structure from this amplified range and adds resilience against infrequent but potentially damaging events, protecting both the asset and its contents.
What is the typical cost range for base isolation design in Navan?
For a medium-scale building project, the engineering design and specification package for base isolation typically falls between €3,420 and €7,510, depending on the number of isolators and the complexity of the nonlinear analysis required. The hardware cost (bearings) is additional and defined during detailed design.
How does base isolation affect the building's performance under wind loads?
This is a critical design check. The isolation system must provide sufficient initial stiffness to resist wind loads without activating the full hysteretic cycle. We design a wind restraint threshold, often using the pre-yield stiffness of lead rubber bearings, so the building remains essentially fixed under service-level winds but releases under seismic demand.
Can you retrofit base isolation to an existing building in Navan?
It is technically feasible but structurally demanding. The process involves temporarily supporting the building on jacks, cutting columns at the isolation plane, and inserting the bearings. We then construct a new moat wall and flexible utility connections. The cost and disruption are significant, which is why we strongly recommend isolation for new critical or high-value structures from the outset.
What maintenance do base isolators require over their service life?
Elastomeric bearings are passive devices with no moving parts, so maintenance is minimal. We specify a periodic inspection regime—typically every five years—to check for excessive dust accumulation, rubber cracking, or corrosion on steel plates. The moat covers must also be inspected to ensure they remain free of debris that could obstruct design displacements.
