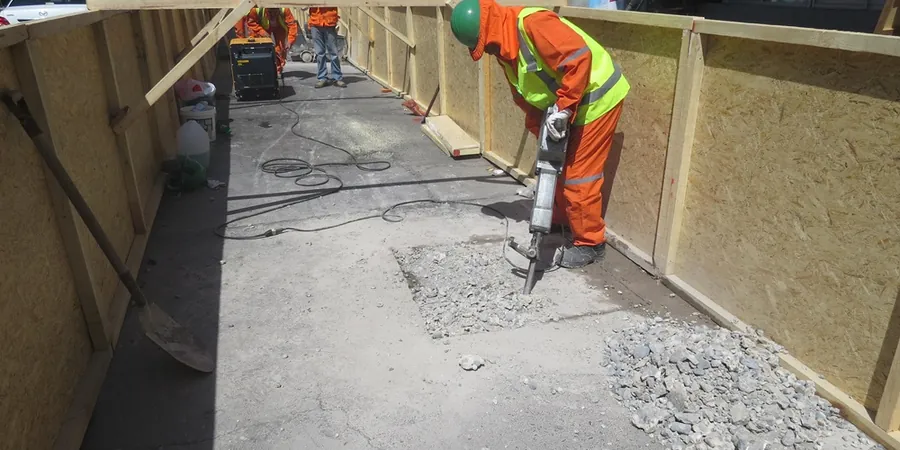

The Boyne Valley around Navan sits on a patchwork of glacial deposits that can shift from dense boulder clay to soft alluvial silt within the length of a single building plot. At 53.65°N, the water table here rarely stays put — winter levels in low-lying areas near the Blackwater can rise to within a metre of the surface. That combination of variable overburden and shallow groundwater is precisely why an exploratory test pit saves money before foundation design begins. We open targeted excavations to expose the stratigraphy, letting our team log the sequence of fill, natural soil, and weathered rock directly. On sites off the Kilcarne Road, we have uncovered buried organic layers that boreholes missed entirely — a reminder that nothing replaces a trained eye inside the pit. For projects where granular soils dominate, pairing the pit with a grain-size analysis gives you the particle distribution needed to assess drainage potential.
A one-day test pit in Navan often reveals more about buildability than a desk study and three boreholes combined.
Methodology and scope
Local considerations
Two sites on opposite sides of the R147 tell the story best. On the east side, near the IDA Business Park, we hit clean limestone gravel at 1.8 m — straightforward bearing, minimal dewatering. Less than two kilometres west, in a housing estate off the Trim Road, the same depth exposed grey silty clay with groundwater weeping at 1.2 m. That developer had already poured strip footings on the neighbouring plot without a pit; six months later they were chasing cracks. Skipping an exploratory test pit on glacial terrain is a gamble on consistency that the geology simply does not offer. The pit gives you a window into bearing capacity, drainage, and the real depth to competent stratum — data that directly shapes your foundation selection, from footings to ground improvement. In Navan, where the till-bedrock interface can undulate by metres over short distances, that window is worth the half-day of excavation every time.
Applicable standards
IS EN 1997-2:2007 (Eurocode 7 – Ground investigation and testing), IS EN ISO 14688-1:2018 (Identification and classification of soil), IS EN ISO 22475-1:2006 (Sampling methods and groundwater measurements), Safety, Health and Welfare at Work (Construction) Regulations 2013 (S.I. No. 291/2013)
Associated technical services
Trial Pit Logging & Sampling
Full stratigraphic log to IS EN ISO 14688-1, with photographs, in-situ strength indices, and bulk or block samples taken from each distinct horizon encountered.
Laboratory Classification Suite
Moisture content, Atterberg limits, particle size distribution, and organic content — run from our accredited lab to turn field descriptions into design parameters.
Groundwater Monitoring
Standpipe installation in the pit or adjacent borehole to track seasonal water table fluctuation; essential for basement design and dewatering planning.
Foundation Recommendations Report
A concise interpretative report tying pit observations to bearing capacity, settlement estimates, and practical advice on foundation type and depth.
Typical parameters
Frequently asked questions
How much does an exploratory test pit cost in Navan?
For a standard machine-excavated pit with logging, sampling, and a factual report, budget between €490 and €730. The final figure depends on access, depth, number of pits, and whether lab testing is added.
Do I need a test pit if I already have borehole data?
Often yes. Boreholes give you a vertical profile at a point; a test pit exposes a continuous face, revealing lateral changes, fissures, and obstructions that a 100 mm core can miss. The two methods complement each other — the pit confirms what the borehole hinted at.
What safety measures apply to deep test pits?
Any pit deeper than 1.25 m requires shoring, battering, or a trench box before entry. We operate under the Construction Regulations 2013, with gas monitoring, edge protection, and a designated banksman as standard on every Navan site.
How long does the pit stay open?
Typically one working day. We excavate, log, photograph, sample, and backfill in a single visit. If groundwater monitoring is requested, we install a standpipe before backfilling and return for readings over an agreed period.
